Apraksts

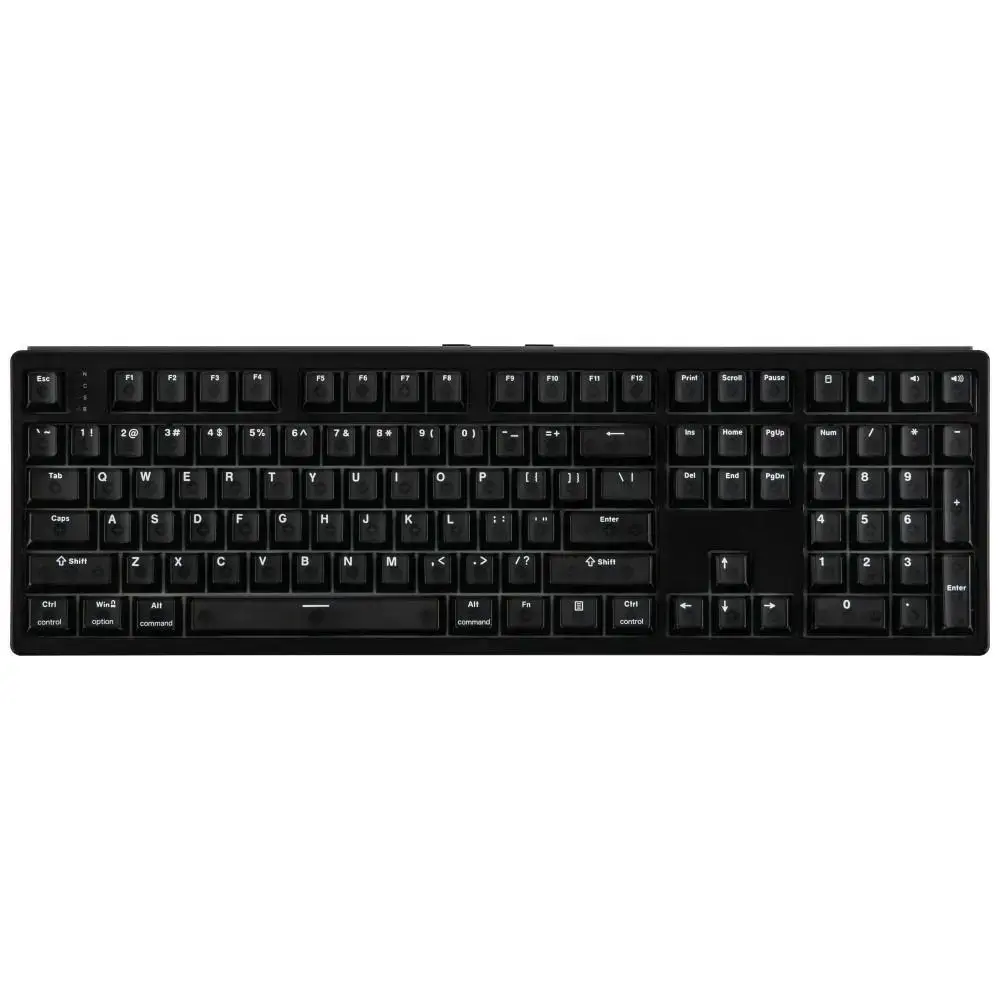

Epomaker HE108 Creamy Jade HE Switch mechanical keyboard
Modern style and functionality
Meet the EPOMAKER HE108 – a tri-mode keyboard combining the precision of Hall Effect switches with the pleasant-to-the-touch feel of a Gasket-Mount construction. Thanks to the large 10,000 mAh battery providing up to 500 hours of runtime (with RGB off), lightning-fast 8K polling, and actuation point adjustment with 0.005 mm accuracy, the HE108 works well both in demanding gaming and professional work.
Full-size 100% layout with numeric keypad
HE108 is a full-size gaming keyboard in a 100% US QWERTY ANSI layout with all 108 keys, including a full numeric keypad. Thanks to the Cherry keycap profile (PBT, double-shot), a stable base with writing angle adjustment (6°, 8° and 10.5°), and dedicated keycaps with Mac markings, the keyboard provides comfort both at work and during long gaming sessions.
Lightning-fast Hall Effect precision
Light up your setup with dynamic, south-facing RGB backlighting, individually adjustable for each key. Magnetic Hall Effect switches allow actuation point adjustment in 0.005 mm increments (from 0.1 to 3.3 mm), while Rapid Triggering, Snap Key (SOCD), and DKS/MT functions give you an advantage in games requiring reflexes and precision. In the EPOMAKER Driver software, you can configure key mapping, macros, lighting effects, and advanced magnetic switch settings.
Smooth and dampened keystrokes in a Gasket-Mount construction
The five-layer sound-dampening system (sandwich PORON foam, IXPE switch pad, PET sound-enhancing pad, foam-latex switch socket pad, and bottom silicone layer), combined with the flexible Gasket-Mount structure and PC plate plus FR4 PCB with Flex-Cut cutouts, guarantees a pleasant, "thocky" sound typical of mechanical keyboards – despite the use of magnetic switches. The hot-swappable PCB is compatible with popular Hall Effect switches.
No cables, no limits
HE108 offers tri-mode connectivity: wired USB, wireless 2.4 GHz, and Bluetooth. One full charge of the 10,000 mAh battery allows up to 500 hours of operation without RGB backlighting (32 hours with RGB enabled) and up to 1000 hours in standby mode, while the keyboard works with Mac, Windows, and Android systems, remembering settings for up to 5 paired devices.
Technical Specifications
Brand
EPOMAKER
Set contents
- HE108 keyboard
- Detachable USB A-C cable and 2.4 GHz wireless receiver (stored under the left foot)
- 2-in-1 keycap and switch puller tool
- Quick start guide in multiple languages
- 2 additional switches
- Product card
Keyboard
Model
HE108
Layout
Full-size gaming keyboard, 100% layout, US QWERTY ANSI
Number of keys
108 keys
Structure
Gasket-Mounted
Keycaps with Mac markings
Yes
Housing material
Thick ABS plastic
Plate material
PC plastic
Flex-Cut
Yes – PC plate and FR4 PCB with Flex-Cut cutouts
Stabilizers
Precisely tuned plate-mounted stabilizers (not compatible with PCB-mounted or screw-in stabilizers)
Front / rear height
1.8 cm / 3.2 cm
Typing angle
6°, 8° and 10.5°
Keycap profile
Cherry
Keycap material
PBT
Keycap manufacturing technique
Double-shot
Switch
Factory-lubed magnetic linear switch
Hall Effect accuracy
0.005 mm
Rapid Triggering
Yes
Snap Key (SOCD)
Yes
DKS
Yes
Deadzone
0–0.3 mm
Hot-swappable
Yes, hot-swappable PCB compatible with popular Hall Effect switches
RGB
South-facing, individual backlighting for each key
Polling rate
8000 Hz (USB and 2.4 GHz), 125 Hz (Bluetooth)
Scan rate
16,000 Hz (entire plate), 128,000 Hz (per key)
Latency
0.2 ms (USB), 0.4 ms (2.4 GHz), 8 ms (Bluetooth)
Anti-ghosting
Yes, full anti-ghosting (N-Key Rollover)
Software
EPOMAKER Driver 3.0 – key mapping, macros, RGB settings, and Hall Effect switch functions (DKS, SOCD, MT, Rapid Triggering, deadzone)
Connectivity
Tri-mode: 2.4 GHz, Bluetooth, wired USB
Compatibility
Mac, Windows, Android
Battery capacity
10,000 mAh
Battery runtime
32 hours (RGB on), 500 hours (RGB off), 1000 hours (standby)
Sound dampening (5 layers)
Sandwich PORON foam
IXPE switch pad
PET sound-enhancing pad
Foam-latex switch socket pad
Bottom silicone layer
Package dimensions
44.5 × 14.1 × 4.8 cm
Package weight
1.67 kg
Keyboard weight
approx. 1.2 kg
Color
White / Black
Switches
Name
Creamy Jade HE Switch
Type
Magnetic Hall Effect switch
Initial force
min. 30 gf
Bottom-out force
max. 55 gf
Initial magnetic flux (with 1.6 mm PCB)
95 ± 15 GS
Bottom-out magnetic flux (with 1.6 mm PCB)
580 ± 50 GS
Actuation travel
Adjustable in 0.005 mm increments, from 0.1 mm to 3.3 mm
Total travel
3.3 ± 0.1 mm
Top housing
PC, transparent
Bottom housing
PA66
Stem
POM
Light diffuser
Yes, transparent acrylic diffuser
