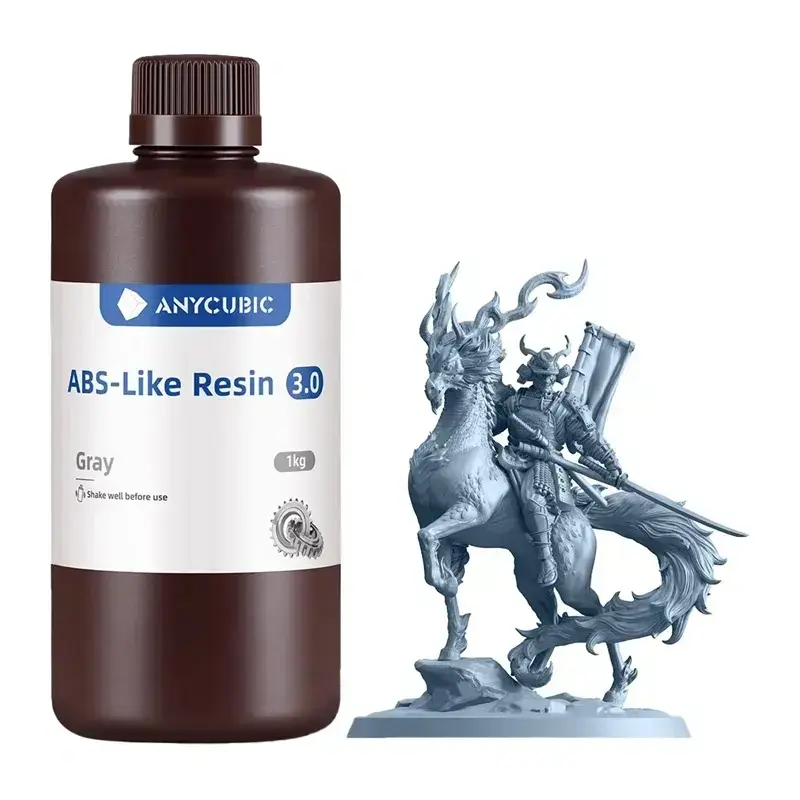

ANYCUBIC ABS-Like Resin 3.0 (Gray)

Kirjeldus

ANYCUBIC ABS-Like Resin 3.0 (Gray)

ANYCUBIC ABS-Like Resin 3.0 is a photopolymer resin designed for LCD and DLP 3D printers, combining high mechanical strength, crack resistance, and high print accuracy. With an elongation at break of 25–30%, an impact strength of 130 J/m, and a low volumetric shrinkage rate (3.9–4.9%), it allows you to create durable models with a smooth surface and a very high level of detail. Low viscosity and minimal odor further enhance the comfort of use.

Greater flexibility and improved strength

ABS-Like Resin 3.0 is ideal for creating parts subjected to stress. With a hardness of 83–86 HD and high impact resistance, the finished models retain their durability even during drilling and further machining. The material also stands out for its very low susceptibility to warping, making it ideal for printing mechanical parts, device housings, and automotive components. Additionally, ABS-Like Resin 3.0 offers an elongation at break of up to 30%, which is nearly twice that of many standard ABS-type resins. These properties allow the material to better withstand stress and increase the models’ resistance to damage caused by everyday use.

High precision and shorter print times

Low shrinkage and an optimally selected viscosity of 280–300 mPa·s result in highly accurate detail reproduction and a smooth surface texture. The material’s good flow accelerates its return to the build volume, which helps reduce print time and increase productivity.

Comfort during printing and broad compatibility

The resin formula was developed to minimize odor and reduce the risk of irritation during use. You also don’t have to worry about compatibility issues—ABS-Like Resin 3.0 works with a wide range of LCD and DLP 3D printers that use UV light with a wavelength between 365 and 405 nm. This makes it ideal for both home workshops and more advanced projects.



ManufacturerANYCUBICModelABS-Like 3.0ColorGrayMaterialPhotopolymer resinWavelength365–405 nmViscosity280–300 mPa·s (25°C)Density1.06–1.09 g/cm³Hardness83–86 HDTensile strength38–45 MPaElongation at break25–30%Flexural modulus50–65 MPaFlexural strength1500–2000 MPaYoung’s modulus1300–1700 MPaIzod impact strength130 J/mVolumetric shrinkage3.9–4.9%Printing temperature20–50°CRecommended ambient temperature during printing20–40°CExposure time for the first layer23–40 sExposure time for a standard layer2–3.6 sCleaning agent95% IPAWashing time≥3 minUV wavelength during curing405 nmCuring temperature18–30°CUV irradiance25,000–30,000 µW/cm²Curing time3 minWeight1 kg
